Nautilus Hyosung ATMs

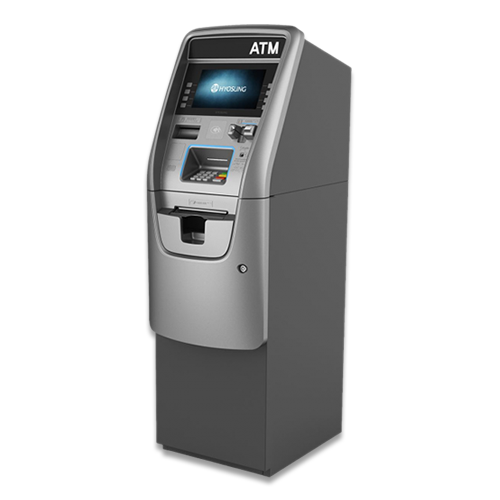

Hyosung Halo II ATM Series

The HALO II offers a unique, sleek design perfect for locations ranging from small convenience stores to high-end retail ATM locations. Its highly intuitive operator menu program enables first time and veteran users to easily operate and service the machine. The HALO II uses components compatible with Hyosung’s other retail models, allowing customers to protect their investment with interchangeable spare parts. ATM users also are given options for paperless receipts.

>> Hyosung HALO II Brochure <<

System Platform: Microsoft Window® CE6.0
Communication: TCP/IP, Dial-up
Screen Display: 10.1” color TFT LCD
Card Reader: Dip type card reader, EMV card reader
Cash Dispenser: 1,000 note removable cassette, 1,000 note drawer, 2,000 note removable cassette
Printers: Thermal line 3” Receipt printer
Power Supply: AC 110-240V, 50-60 Hz
Environmental Conditions: Temperature: 0°C ~ 40°C ( 32°F ~ 104°F ), Humidity: 20%-85%
Dimension: Height: 52.6” Width: 15.7” Depth: 23.4” Weight: 265 lbs.
Languages: Supports six languages: English, Spanish, French, Japanese, Chinese, and Korean

Hyosung Shipping Charges Free shipping to most commercial locations. An additional shipping charge of $50 per shipment may apply to shipments to Residential locations. Residential delivery locations include Private Residences, Apartments, Camps, Churches, Construction Sites, Convents, Country Clubs, Golf Courses, Farms, Marinas, Military bases, Mini-storage warehouses, Non-Commercial Locations, Nursing homes, Prisons, Rectory or Schools, Yacht Clubs and other such locations. And an additional shipping charge of up to $100 per shipment may apply to locations with Limited Access Delivery (e.g. 2nd floor or basement delivery without access to a freight elevator) or to Remote locations classified as High Cost Delivery Areas.

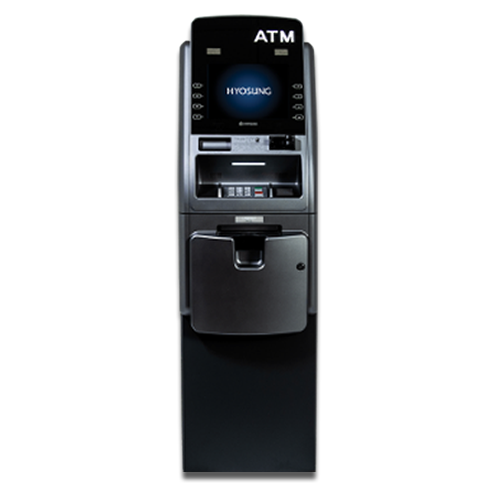

Hyosung Force ATM Series

The integrated topper now has a brightness control (high, medium, and low) allowing the FORCE to be customized to any environment. Arrows at the card and receipt slots light up to direct the user to those areas. Our engineers added a light in the vault to make it easier to cash load and service the ATM. The new FORCE also gives maximum installation versatility with four power cord holes that allow machine to be placed anywhere. he FORCE has an optional camera that photographs the user during transaction and stores it with the associated transaction record. It can also display the camera view on the transaction screen to make the user aware of being filmed. An additional camera mount is provided to allow installation of a third-party camera.

>> Hyosung Force Brochure <<

System Platform: Microsoft Window® CE6.0
Communication: TCP/IP, Dial-up
Screen Display: 8” color TFT LCD
Input Type: Option RKT, 8 function keys, PCI compliant EPP
Card Reader: IC Card Reader (optional), Anti-skimming (optional), Dip type card reader
Cash Dispenser: 500 note cassette, 20 note reject box, Cash tray illumination
Printers: 2” Graphical thermal receipt printer
Power Supply: AC 110-240V, 50-60 Hz
Environmental Conditions: Humidity: 20%-85%, Temperature: 5°C-35°C (41°F -95°F)
Dimension: Height: 18.8” (478 mm), Width: 25.3” (643 mm), Depth: 8.7” (222 mm), Weight: 110 lbs. (50 kg)
Languages: Supports six languages: English, Spanish, French, Japanese, Chinese, and Korean
Security: Electronic Lock

Hyosung Shipping Charges Free shipping to most commercial locations. An additional shipping charge of $50 per shipment may apply to shipments to Residential locations. Residential delivery locations include Private Residences, Apartments, Camps, Churches, Construction Sites, Convents, Country Clubs, Golf Courses, Farms, Marinas, Military bases, Mini-storage warehouses, Non-Commercial Locations, Nursing homes, Prisons, Rectory or Schools, Yacht Clubs and other such locations. And an additional shipping charge of up to $100 per shipment may apply to locations with Limited Access Delivery (e.g. 2nd floor or basement delivery without access to a freight elevator) or to Remote locations classified as High Cost Delivery Areas.

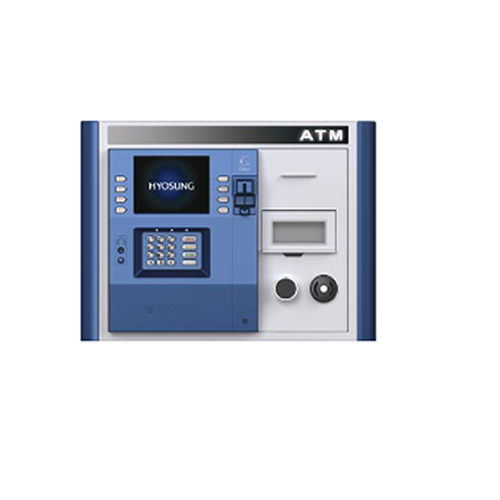

Hyosung 4000W ATM Series

The 4000W provides unsurpassed convenience to all user interface through an 8-inch color LCD screen. The 4000W was designed with speed and ease-of-use in mind so you get rapid transaction processing and speedy service. It can be mounted to a wall using the sturdy steel brackets (included) with ATM or optionally mounted on a table or counter-top.

>> Hyosung 4000W Brochure <<

System Platform: Microsoft Window® CE6.0
Communication: TCP/IP, Dial-up
Screen Display: 8” color TFT LCD
Input Type: Option RKT, 8 function keys, PCI compliant EPP
Card Reader: IC Card Reader (optional), Anti-skimming (optional), Dip type card reader
Cash Dispenser: 500 note cassette, 20 note reject box, Cash tray illumination
Printers: 2” Graphical thermal receipt printer
Power Supply: AC 110-240V, 50-60 Hz
Environmental Conditions: Humidity: 20%-85%, Temperature: 5°C-35°C (41°F -95°F)
Dimension: Height: 18.8” (478 mm), Width: 25.3” (643 mm), Depth: 8.7” (222 mm), Weight: 110 lbs. (50 kg)
Languages: Supports six languages: English, Spanish, French, Japanese, Chinese, and Korean
Security: Electronic Lock

Hyosung Shipping Charges Free shipping to most commercial locations. An additional shipping charge of $50 per shipment may apply to shipments to Residential locations. Residential delivery locations include Private Residences, Apartments, Camps, Churches, Construction Sites, Convents, Country Clubs, Golf Courses, Farms, Marinas, Military bases, Mini-storage warehouses, Non-Commercial Locations, Nursing homes, Prisons, Rectory or Schools, Yacht Clubs and other such locations. And an additional shipping charge of up to $100 per shipment may apply to locations with Limited Access Delivery (e.g. 2nd floor or basement delivery without access to a freight elevator) or to Remote locations classified as High Cost Delivery Areas.

Hyosung 5200SE ATM

The striking design and advanced function options of the 5200SE make this ATM the ideal choice for bank–branded, high–end retail locations and sites requiring greater security. Cash capacity ranges from a single 2,000 note cassette to up to three 2,000-note cassettes, providing a maximum load of 6,000 notes. The 5200SE offers customers a choice of a UL 291 certified business hours safe with enhanced break-in protection or a heavy-duty Level 1 safe. Enhanced physical protection includes a reinforced cash tray and heavier metal plating. For added intrusion and fraud security, the 5200SE offers an optional camera-ready fascia, optional anti-skim EMV reader and support for Transport Later Security (TLS) network encryption protocol. The 5200SE can be counted on to stand up to heavy use. The system incorporates Hyosung modular component architecture designed for high reliability, quick and easy service, and accessibility.

>> Hyosung 5200SE Brochure <<

System Platform: Microsoft Window® CE6.0
Communication: TCP/IP, Dial-up
Input Type: Option RKT, ADA Compliant, 8 function keys, PCI compliant EPP
Screen Display: 12.1” TFT LCD
Card Reader: Dip type card reader, EMV card reader
Cash Dispenser: 2,000 note removable cassette, Upgradable to 3 cassettes
Printers: Thermal line 3” Receipt printer
Power Supply: AC 110-240V, 50-60 Hz
Environmental Conditions: Temperature: 0°C ~ 40°C ( 32°F ~ 104°F )Humidity: 20%-85%
Dimension: Height: 56.4” Width: 15.7” Depth: 23.4” Weight: 286.6 lbs.
Languages: Supports six languages: English, Spanish, French, Japanese, Chinese, and Korean
Security: UL 291 Business Hours Safe, Electronic Lock, KABA Mas Cencon Lock, Level1 Safe, Cencon Lock, S&G Lock

Hyosung Shipping Charges Free shipping to most commercial locations. An additional shipping charge of $50 per shipment may apply to shipments to Residential locations. Residential delivery locations include Private Residences, Apartments, Camps, Churches, Construction Sites, Convents, Country Clubs, Golf Courses, Farms, Marinas, Military bases, Mini-storage warehouses, Non-Commercial Locations, Nursing homes, Prisons, Rectory or Schools, Yacht Clubs and other such locations. And an additional shipping charge of up to $100 per shipment may apply to locations with Limited Access Delivery (e.g. 2nd floor or basement delivery without access to a freight elevator) or to Remote locations classified as High Cost Delivery Areas.
